Electric Battery Powered Reach Truck
Products
Electric Powered Reach Truck
Stand on electric reach truck for sale
Lead Acid Battery Reach Truck
Standing type Reach Truck
Electric Reach Truck Standing type
Battery Powered Reach Truck

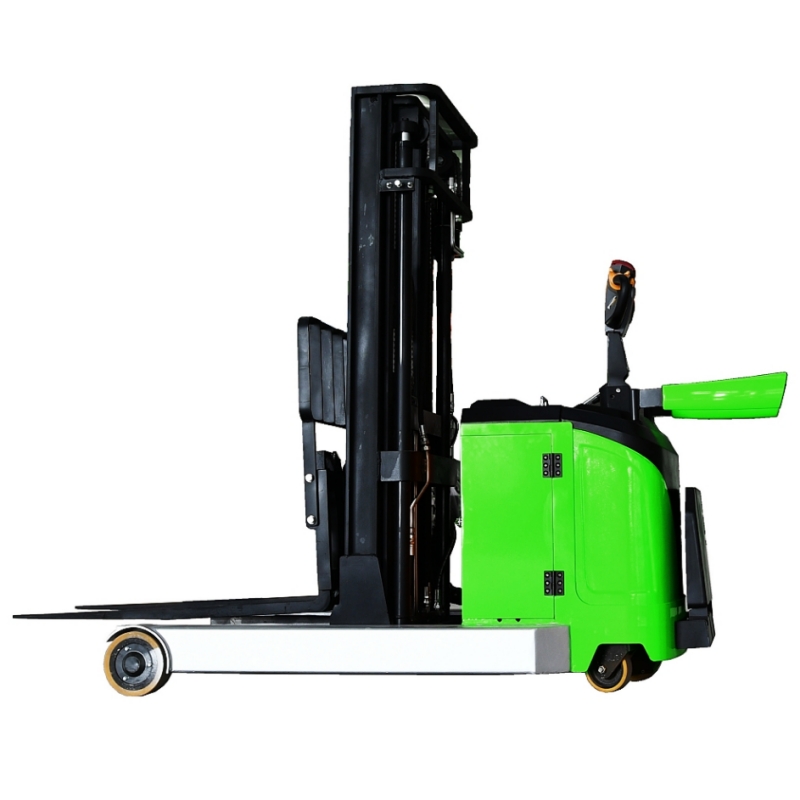

Standing Type Electric Battery Powered Reach Truck

Standing type reach truck with load 1.2T- 2.5T with lifting height 3-8m. The mast can be moved forward or retracted as a whole, with a small body and turning radius and higher efficiency.



  • Item No :

    NRZ
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Green/Red/Customized
  • Shipping Port :

    Shanghai/Nanjing/Ningbo,etc
  • Lead Time :

    20 days
  • Order(MOQ) :

    1 unit

Standing Type Electric Battery Powered Reach Truck

Standing type  electric reach truck ,rated loading capacity 1.2T- 2.5T with lifting height 3-8m. The mast can be moved forward or retracted as a whole, with a small body and turning radius and higher efficiency.Applicable to medium storage density, high turnover rate conditions,stacking in narrower channels.



Details:

Details of Stand On Type Electric Reach Truck



Features:

1. Standard AC drive and EPS electric steering, better feel and lower energy consumption;

2. Equipped with pure electric steering, making steering more labor-saving, reducing fatigue strength and improving efficiency;

3. Smaller body size with smaller turning radius and right-angle stacking channel;

4. It has the function of turning speed limit, and automatically decelerates when turning, effectively protecting the safety of goods and operators;

5. Ergonomic design: easy-to-operate valve stem and multi-functional intelligent instrument, some models have wheel display function;

6. Imported controller, more stable and safer;

7. Mechanical disc brake, which is released when the brake pedal is pressed to ensure safe operation;

8. Ingenious gantry design to increase the free lifting height;



Specification:


  Manufacturer   NEOlift
Model   NRZ15 NRZ20
Power type   Battery Battery
Rated capacity kg 1500 2000
Service weight(incl. battery) kg 2850 2950
Lift height mm 4500 4500
Fork size mm 1070/100/35 1070/122/40
Reach stroke mm 525 677
Brake type   Mechanical Mechanical
Driving Motor(S2-60min) kw 4.5 4.5
Lifting Motor(S3-15%) kw 7.5 7.5
Battery voltage/capacity V/Ah 48/300 48/300
Battery weight kg 500 500
Steering system   EPS EPS
Battery replacement type   Side pull Side pull


Size of Stand On Type Electric Reach Truck



Application:

1.Food

2.Medical

3.Electronics

4.Hardware

5.Chemical

6.Logistics

Application of Stand On Type Electric Reach Truck



Certificate:

Certificate



Why choose NEOlift?

1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.

2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.

3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
