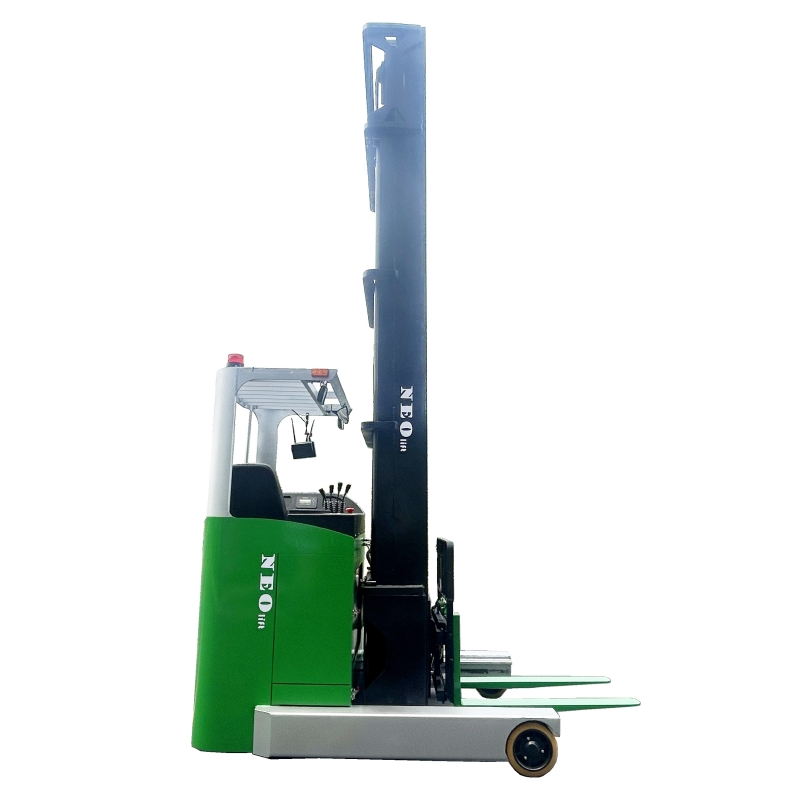

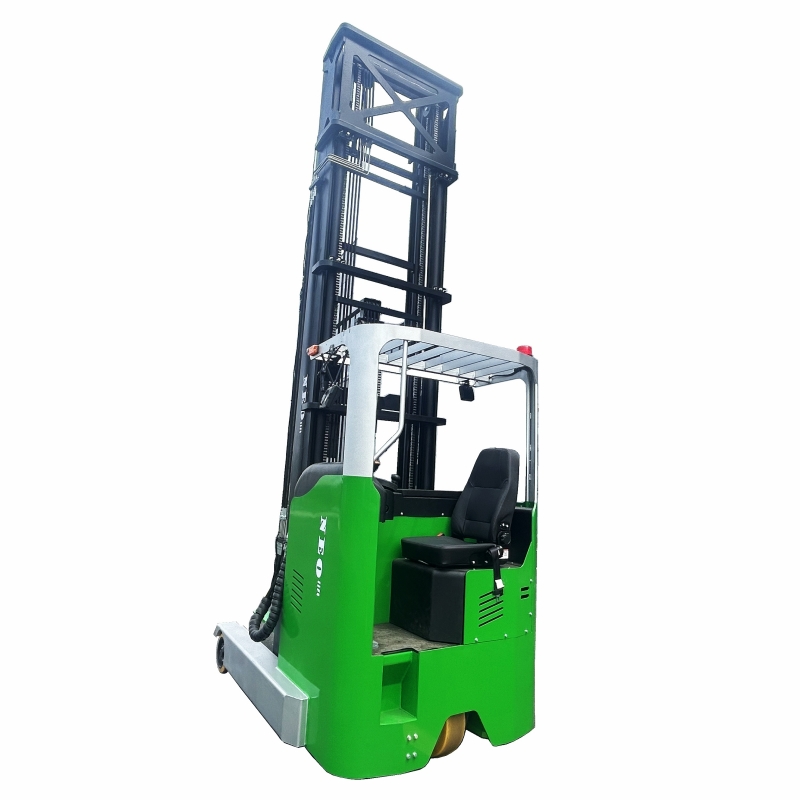

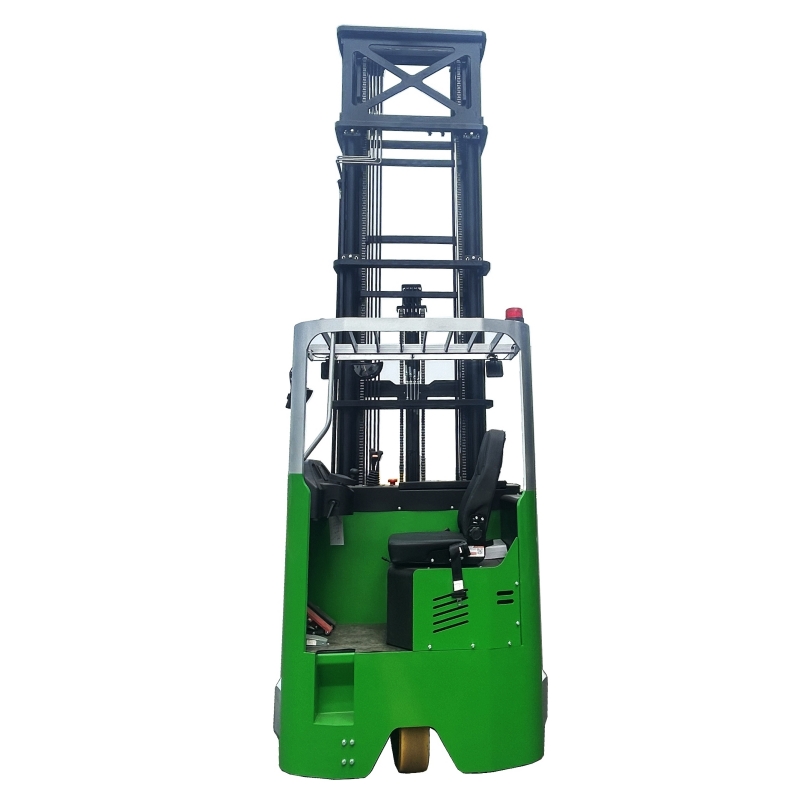

Seated Type Electric Battery Powered Reach Truck

Seated type reach truck is a new-design reach truck, with loading capacity from 1.6 to 2.5 tons. The mast can be moved forward or backward as a whole, which has a smaller body, turning radius and higher efficiency.

  • Item No :

    NRS
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Green/Red/Customized
  • Shipping Port :

    Shanghai/Nanjing/Ningbo,etc
  • Lead Time :

    25-30 days
  • Order(MOQ) :

    1 uint

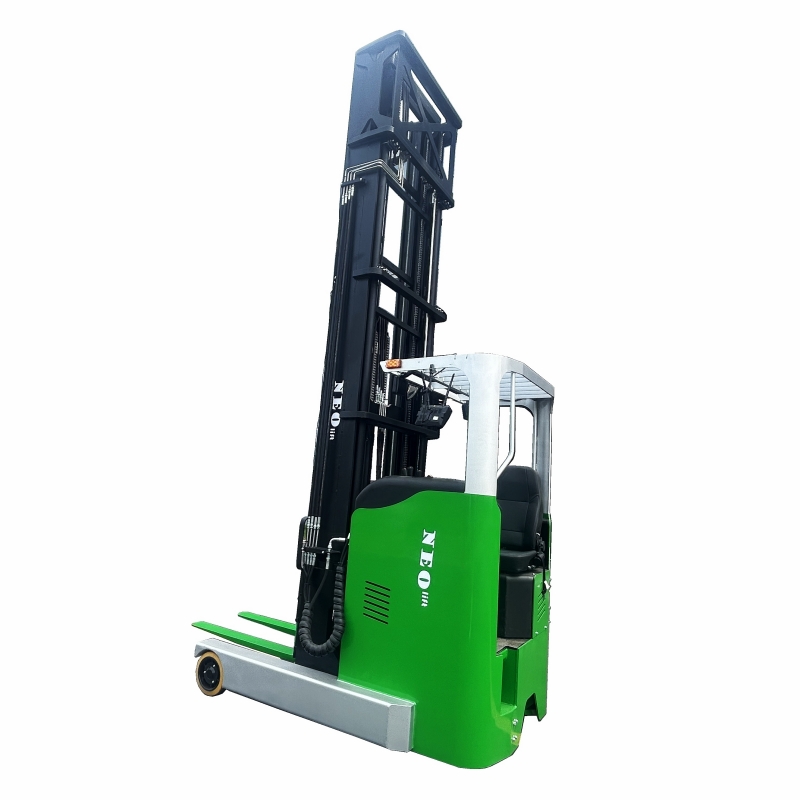

Seated Type Electric Battery Powered Reach Truck

Seated type electric reach truck is a new-design reach truck, with loading capacity from 1.6 to 2.5 tons. The mast can be moved forward or backward as a whole, which has a smaller body, turning radius and higher efficiency.It is widely used in the intensive storage industry and can greatly improve the storage capacity.



Deatails:

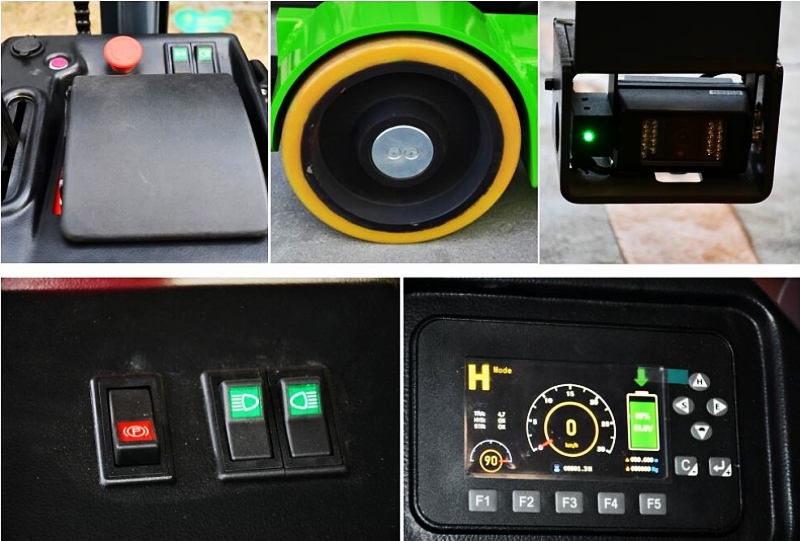

Details of Seated Type Electric Battery Powered Reach Truck

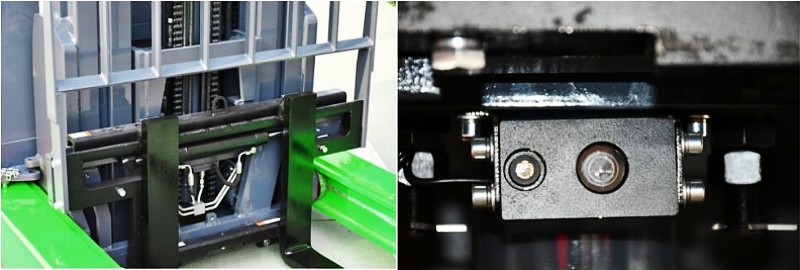

Details of Seated Type Electric Battery Powered Reach Truck

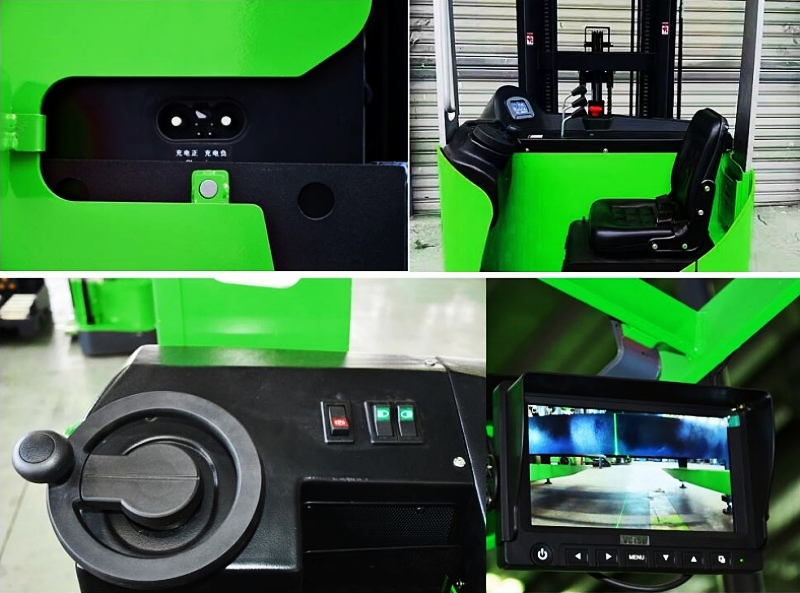

Details of Seated Type Electric Battery Powered Reach Truck



Features:

1.Four Wheel Braking

Equipped with front and back wheel braking, with a better braking performance, which is suitable for using on the wed and frozen ground. All this can guarantee operator safety;

2.Ergonomics Design

Easy operation joystick design and multi-function display with wheel position, which can makes operation more comfortable and convenient;

Adjustable seat can provide operator with the most comfortable operation environment;

3.Excellent Weight-bearing Mast

No loading capacity loss within 6000mm, and excellent loading performance at super-high position;

4.Strong Endurance

Full AC system design, high-efficiency and energy-saving motors without carbon brush can meet multiple operation requirements under heavy working conditions.



Specification:


  Manufacturer   NEOlift
Model   NRS16  NRS20
Power type   Battery Battery
Rated capacity kg 1600 2000
Service weight(incl. battery) kg 3320 3600
Lift height mm 7500 7500
Overall length mm 2440 2500
Overall width  mm 1270 1270
Fork size mm 1070×100×35 1070×122×40
Brake type   Electromagnetic Electromagnetic
Driving Motor(S2-60min) kw 4.5 6.5
Lifting Motor(S3-15%) kw 6.3 8.6
Battery voltage/capacity V/Ah 48/400 48/460
Battery weight kg 700 800
Steering system   EPS EPS

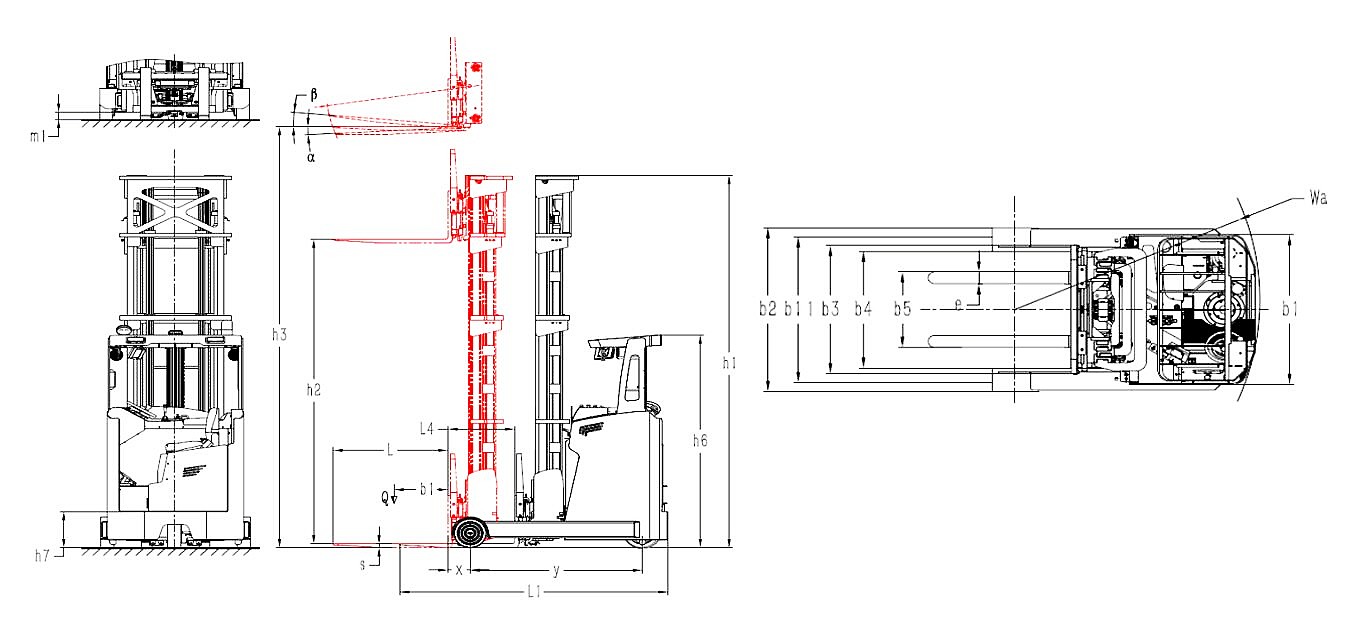

Size of Seated Type Electric Battery Powered Reach Truck



Application:

1.Food

2.Medical

3.Electronics

4.Hardware

5.Chemical

6.Logistics

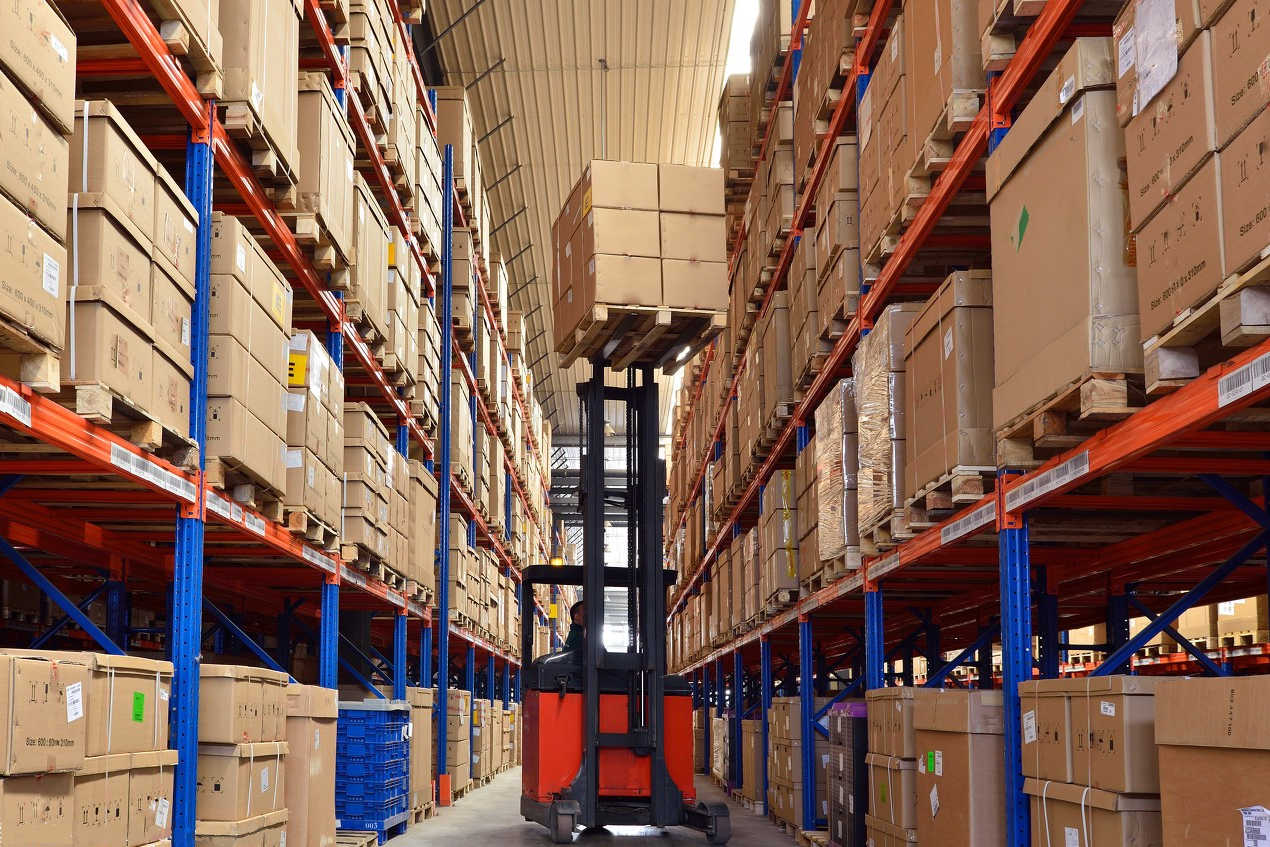

Application of Seated Type Electric Battery Powered Reach Truck

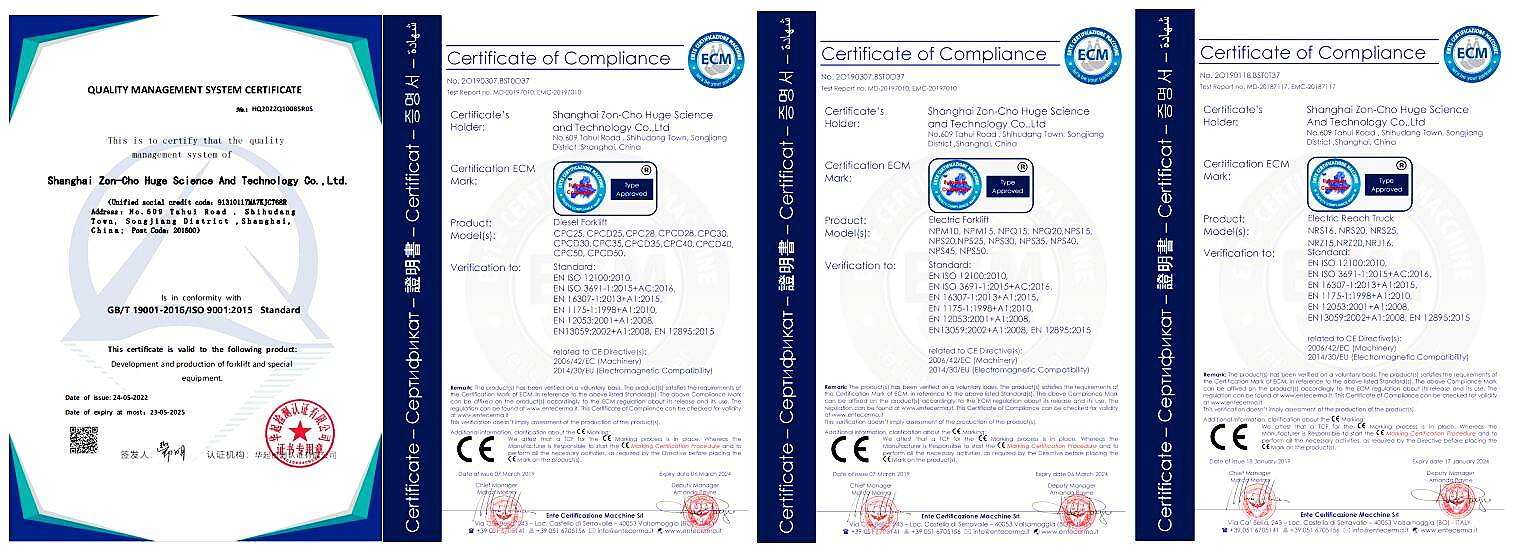

Certificate:

Certificate



Why choose NEOlift?

1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.

2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.

3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
