H series 1.5-4.0 Tons Gasoline and LPG Counterbalance Forklift

H series Gasoline and LPG forklift encompasses both brilliant performance and high quality. Capacity range 1.5-4.0 tons,lifting heights 3000-7000mm.They need no maintenance, user friendly and anti corrosive in nature, thus are widely demanded in the national and international market.

  • Item No :

    CPQYD
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Green/Red/Customized
  • Shipping Port :

    Shanghai/Qingdao/Ningbo,etc
  • Lead Time :

    10-15 days
  • Engine :

    Chinese/Japanese
  • Order(MOQ) :

    1 unit

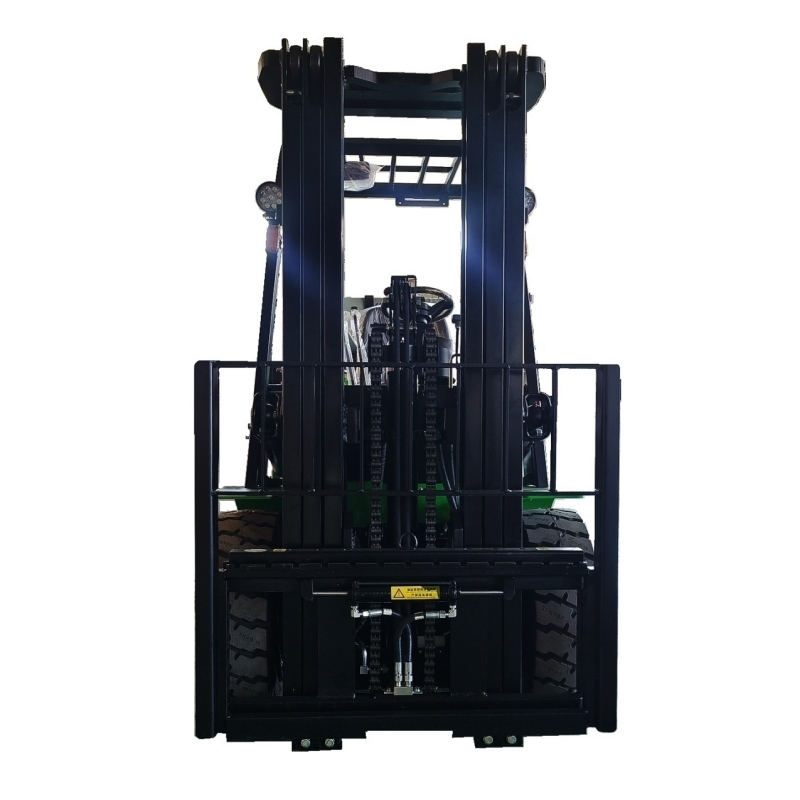

H series 1.5-4.0 Tons Gasoline and LPG Counterbalance Forklift

H series Gasoline and LPG Counterbalance Forklift encompasses both brilliant performance and high quality. Capacity range 1.5-4.0 tons,lifting heights 3000-7000mm.They need no maintenance, user friendly and anti corrosive in nature, thus are widely demanded in the national and international market.High quality and low price, strong power, can adapt to various complex working conditions, environmental protection and safety, and are deeply loved by users.

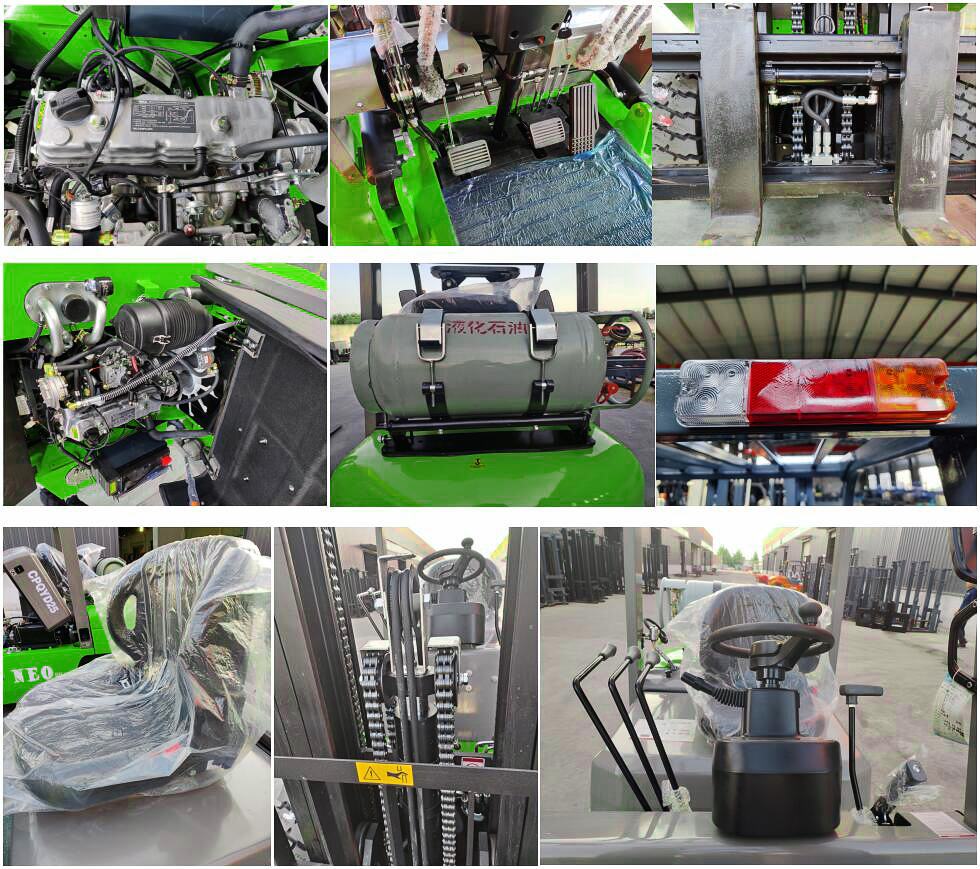

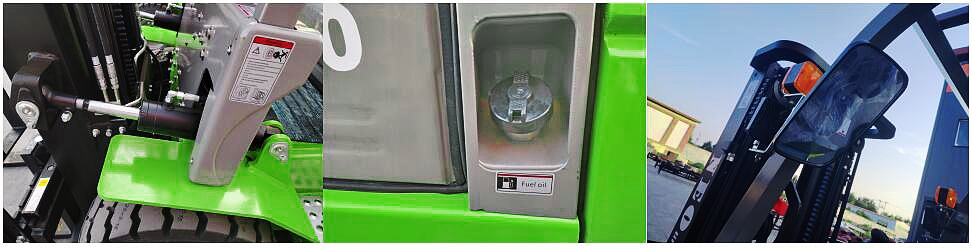

Details:

Details of LPG forklift

Details of LPG forklift

Details of LPG forklift



Features:

1.Smooth and novel shape, with automobile design elements counterweight, strong personality and dynamic

2.Reasonable oil circuit layout and pipeline design reduce oil pressure loss and prevent oil temperature from being too high

3.High strength integrated engine hood and safety frame molded in one piece are safer in operation

4.Ergonomic design is adopted to place the control device low to the right, which greatly reduces the fatigue of the operator

5.The double suspension structure reduces excessive vibration of the engine and makes the operation more comfortable

6.Integral steering gear, more sensitive directivity, smoother operation and more stable quality

7.Large Angle steering wheel adjustment can meet the driving needs of different people

8.Easy replacement of large-capacity steam bottles, which can meet the needs of long-term operation.



Specification:

Model   CPQYD30 CPQYD35 CPQYD38 CPQYD40
Power type   Gasoline/Liquefied gas/Natural gas
Rated capacity kg 3000 3500 3800 4000
Load center  mm 500 500 500 500
Lifting height mm 3000 3000 3000 3000
size of forks LxWxT mm 1070*122*45 1070*125*50 1070*125*50 1070x125x50
Mast tilt front/rear   6/12 6/12 6/12 6/12
Wheelbase mm 1760 1760 1760 1860
Wheel distance Front mm 1000 1000 1000 1000
Rear mm 970 970 970 970
Ground clearance Mast mm 130 130 130 130
Axle center mm 200 200 200 200
Max. traction Load/without load kg 1696/1190 1850/1250 1950/1300 2000/1330
Max. gradeability Load/without load % 15/18 15/18 16/20 16/20
Weight kg 4230 4650 4780 5090
Motor Model   GQ-4Y

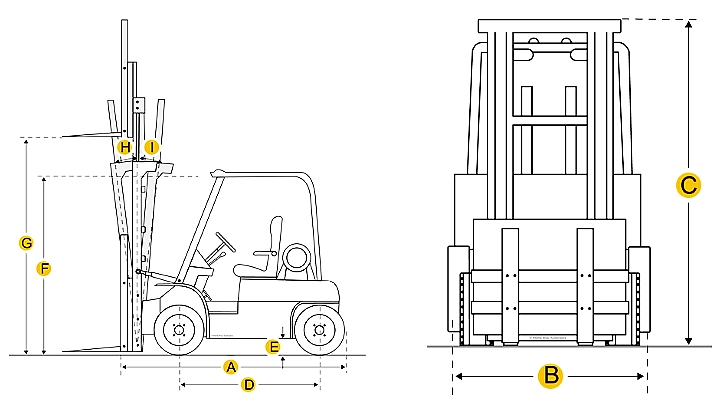

Size of gasoline and LPG forklift



Application:

1.Warehouse
2.Port
3.Factory
4.Distribution Center
5.Logistics

Application of 1.5-4.0 Tons Gasoline and LPG Counterbalance Forklift

Certificate:

Certificate

Why choose NEOlift?

1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.

2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.

3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
