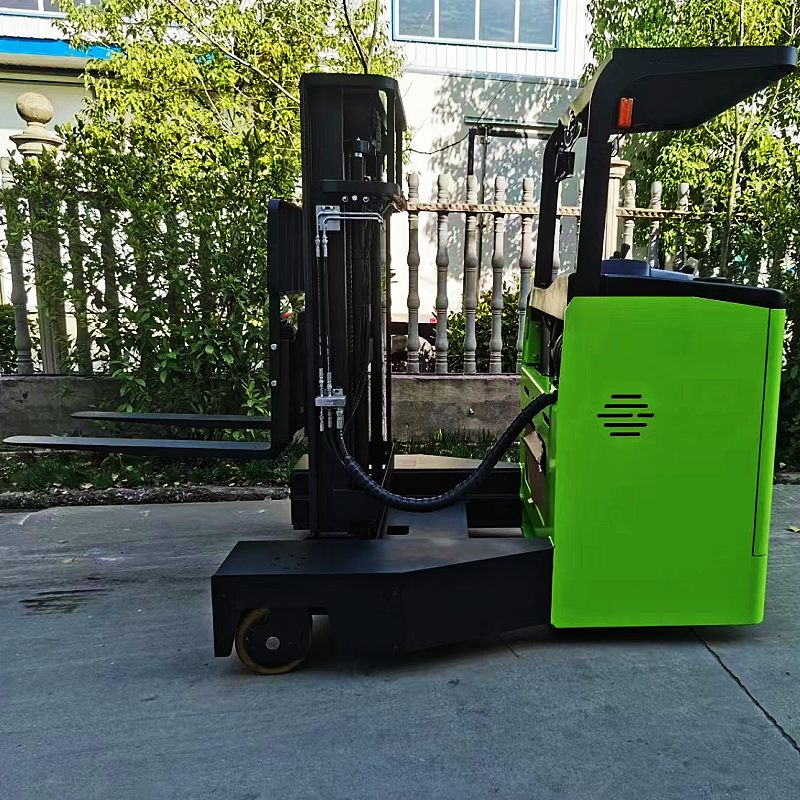

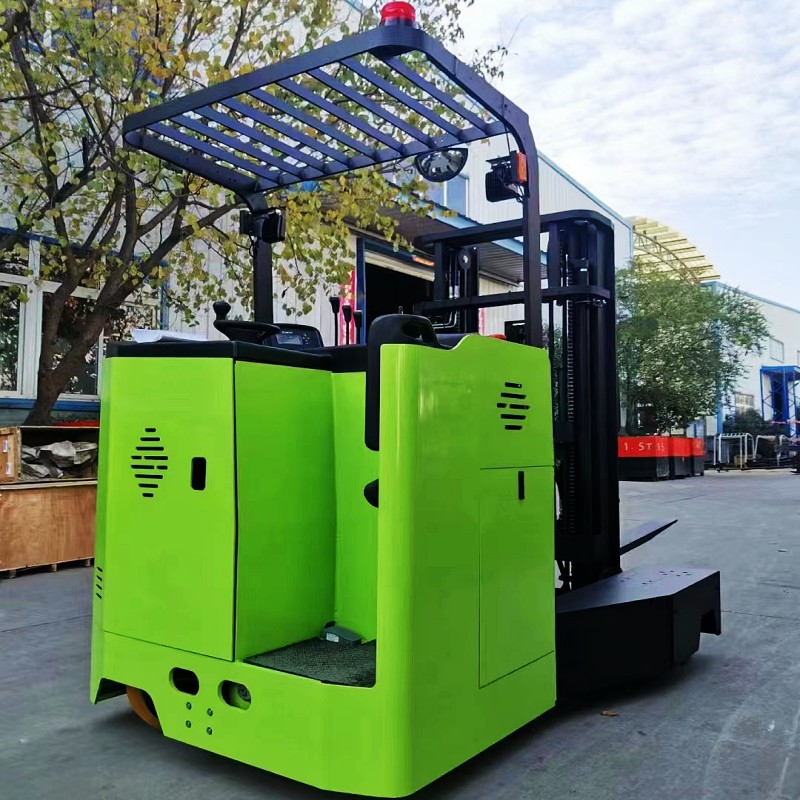

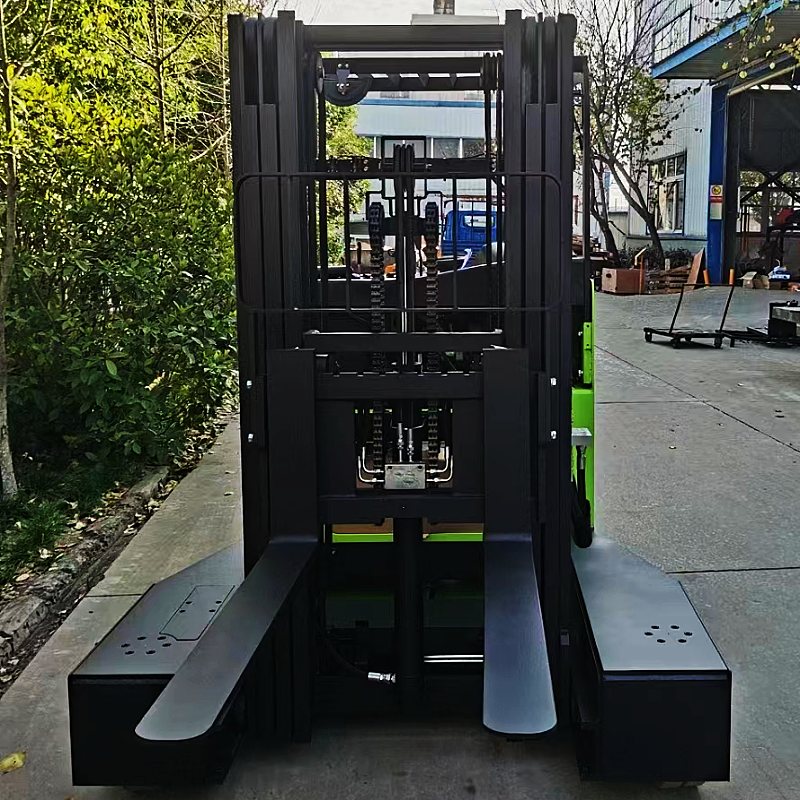

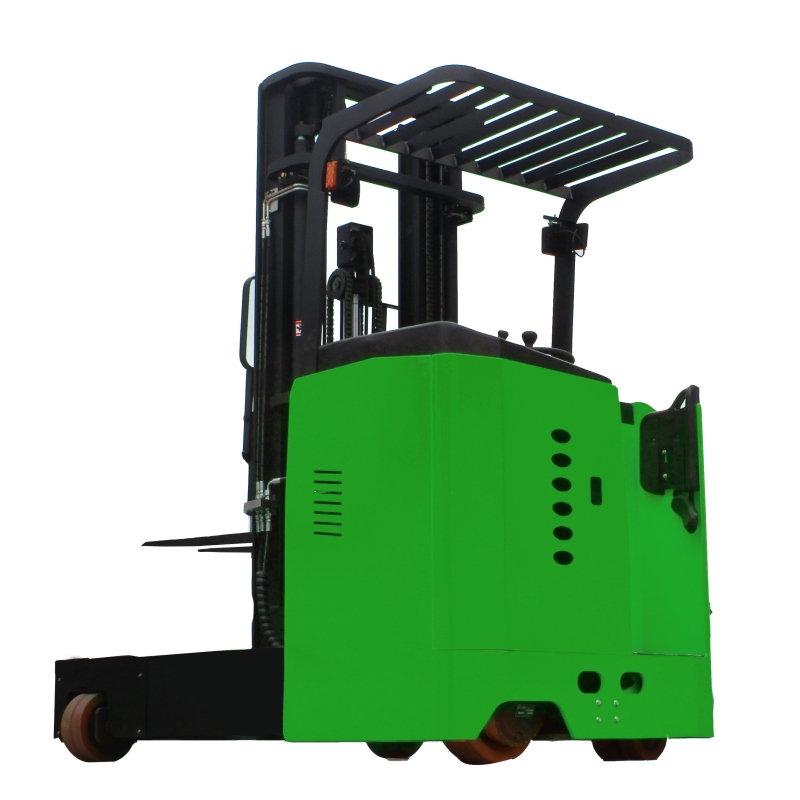

Standing Type 4-directional Reach Truck
Standing Type 4-directional Reach Truck
Standing Type 4-directional Reach Truck
Standing Type 4-directional Reach Truck
Standing Type 4-directional Reach Truck

Standing Type 4-directional Reach Truck

4-directional reach truck mainly used for long material handling in narrow aisle. The main feature is that it can drive in four directions, front, rear, left, and right, and the requirements for aisle and turning radius are small. The rated load is 1.5-3.0 tons, and the lifting height is 3.0-8.0 meters. It is mainly used in long material industries such as steel, profile, plate and wood.

  • Item No :

    NRQ
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Green/Red/Yellow/Customized
  • Shipping Port :

    Shangjai/Nanjing/Ningbo/etc.
  • Lead Time :

    25-30 days
  • Order(MOQ) :

    1 unit

Standing Type 4-directional Reach Truck

4-directional reach truck mainly used for long material handling in narrow aisle. The main feature is that it can drive in four directions, front, rear, left, and right, and the requirements for aisle and turning radius are small. The rated load is 1.5-3.0 tons, and the lifting height is 3.0-8.0 meters. It is mainly used in long material industries such as steel, profile, plate and wood.



Details:

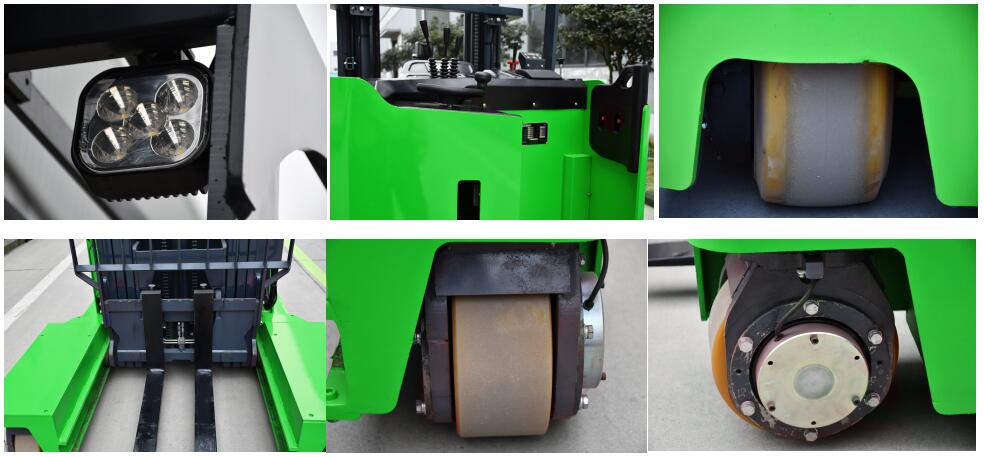

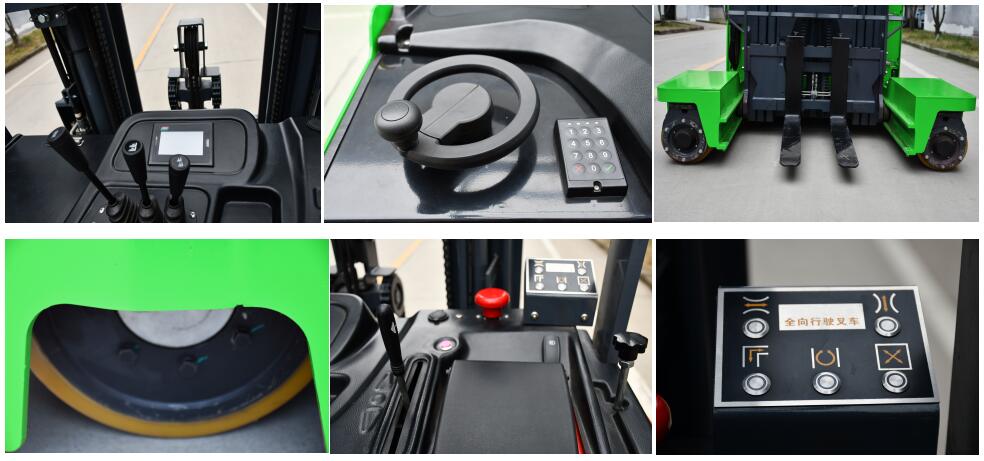

Details of 4-directional forklift

Details of 4-directional forklift



Features:

1. Four-way driving, suitable for very narrow passages and long material handling;

2. Full AC system, electric steering, long service life and low energy consumption;

3. Imported controller, high control precision, convenient electronic control setting, high performance and low failure;

4. High-strength PU tires, stable driving and reliable braking;

5. HD drive wheel display;

6. Large capacity battery.

7. Lithium battery is optional.

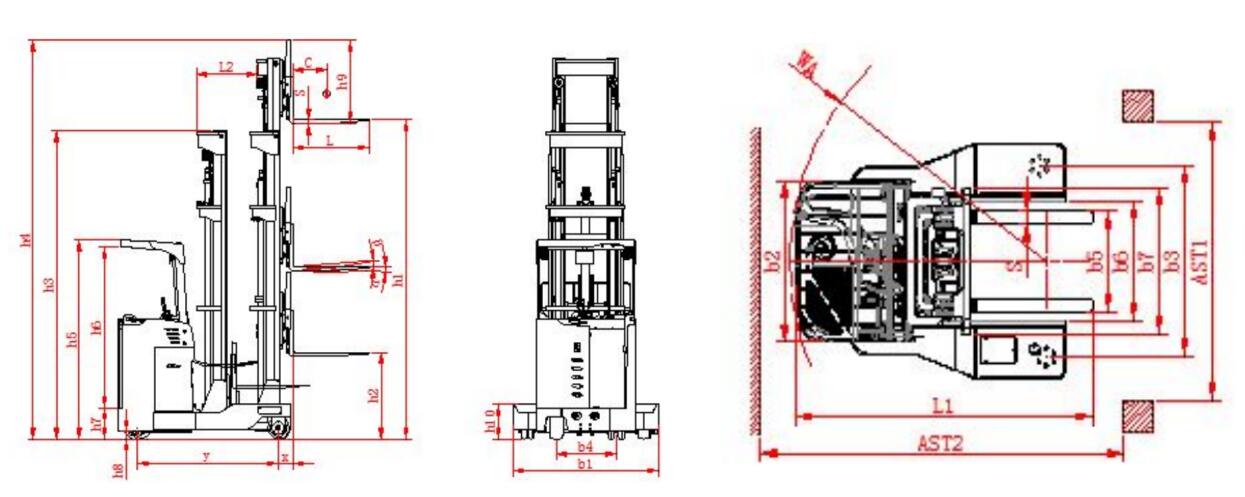

Specification:


  Manufacturer   NEOlift
Model   NRQ25
Load capacity kg 2500
lift height mm 6000
Overall length mm 2700
Overall width mm 1680
Fork size mm 45/125/1070
Reach distance mm 640
Aisle Width for Pallet 1200*1000 Cross away mm 2900
Min.turning radius mm 2105
Driving motor kw 6.5
Lifting motor kw 8.6
Battery type   Lead Acid
Battery capacity V/Ah 48V400Ah
Charger V/Ah 48V/50A
Drive controlling type   AC


Standing Type 4-directional Reach Truck



Application:

1.Food

2.Medical

3.Electronics

4.Hardware

5.Chemical

6.Logistics

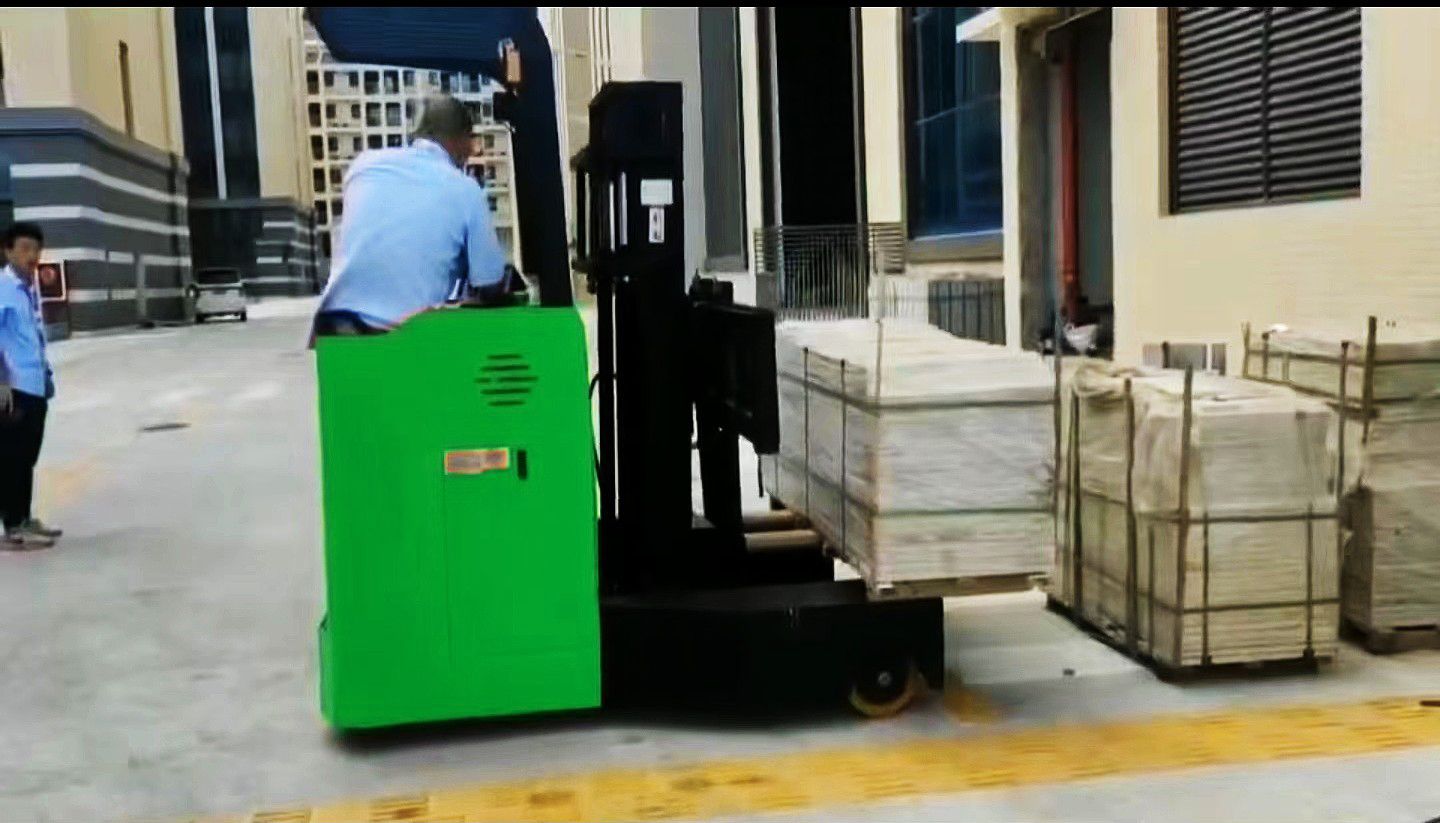

Application of 4-directional reach truck



Certificate:

Certificate



Why choose NEOlift?

1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.

2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.

3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
