Standing Type 3 Way Pallet Stacker VNA Forklift
Standing Type 3 Way Pallet Stacker VNA Forklift
Standing Type 3 Way Pallet Stacker VNA Forklift
Standing Type 3 Way Pallet Stacker VNA Forklift

Standing Type 3 Way Pallet Stacker VNA Forklift

Standing Type 3 Way Pallet Stacker VNA Forklift forks can rotate 180° and do left-right side shift without body turning,loading capacity 1.0-1.5 tons with lifting height 3-9 meters.The 3-way pallet stacker is the first choice of intensive storage, which is mainly used in logistics, medicine, food and low-temperature cold storage.

  • Item No :

    NVZ
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Green/Red/Customized
  • Shipping Port :

    Shanghai/Nanjing/Ningbo,etc
  • Lead Time :

    35-40 days
  • Order(MOQ) :

    1 unit

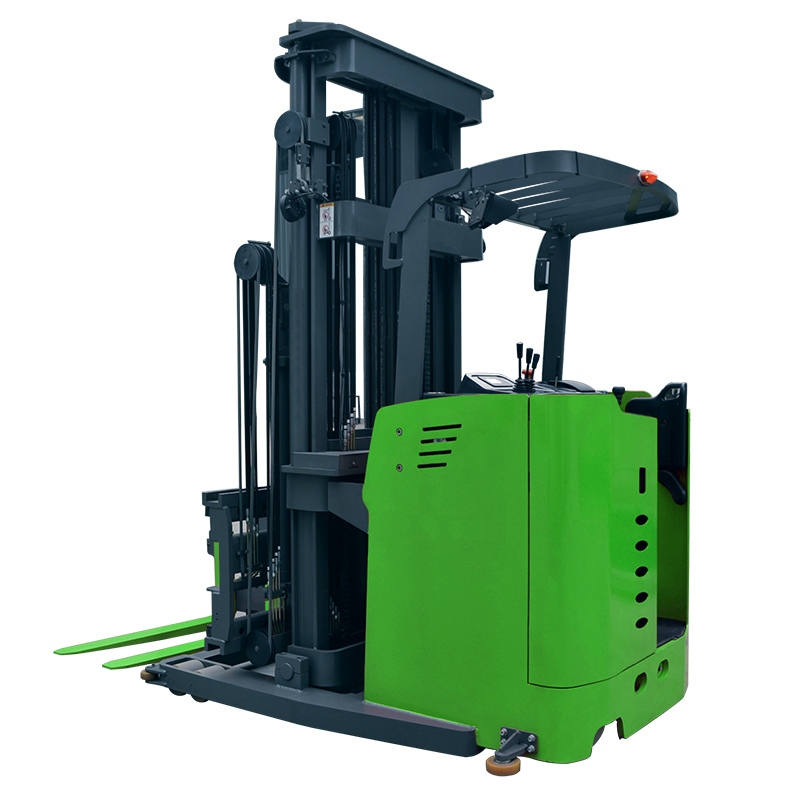

Standing Type 3 Way Pallet Stacker VNA Forklift

Standing Type VNA Forklift 3-way stacking function: forks can rotate 180° and do left-right side shift without body turning.The 3-way pallet stacker is the first choice of intensive storage, which is mainly used in logistics, medicine, food and low-temperature cold storage.Stacking in ultra-narrow roadways and high shelf design;Horizontal handling; Load/unload cargos.Rated capacity 1.0-1.5 tons with lift height 3-9 meters.



Details:

Details of Stand On 3 Way Pallet Stacker



Features:

1.3-way pallet stacker forks can rotate 180°and do left-right side shift without body turning, with high strength mast design. Min. net channel: 1500mm; Max.   lifting height: 9000m. The 3-way pallet stacker can improve space utlization and increase the storage capacity.

2.Advanced Curtis controller and more stable, safer whole-AC system for high efficency, energy conservation and environmental protection.

3.Maintenance-free whole-AC driving system for quick and accurate reaction. Maintenance-free motor, with long service life and low noise   and low maintenance cost.

4.Standard electric power steering is safe and reliable, with easy and comfortable operation.

5.Large section mast structure design to ensure the rigidity of mast and improve loading performances, which is very suitable to high shelf   storage.

6.Imported hydraulic parts for stable and reliable hydraulic system.

7.Side pull type battery for convenient charging and maintenance.



Specification:


  Manufacturer   NEOlift
Model   NVZ10 NVZ15
Power type   Battery Battery
Rated capacity  kg 1000 1500
Service weight(incl.battery) kg 5200 6300
Lift height mm 6000 6000
Fork size  mm 40/122/1070 45/125/1220
Aisle width for pallet 1000x1000mm  Ast(mm) 1600 1760
Brake type   Electromagnetic  Electromagnetic
Driving motor (S2-60min) kw 6.5 AC 7.5 AC
Lifting motor (S3-15%) kw 7.5 AC 8.6 AC
Battery voltage /capacity V/Ah 48/400 48/400
Battery weight kg 700 700
Steering system   EPS EPS
Battery replacement type    Side pull Side pull


Size of Stand On Electric VNA Forklift

Application:

1.Cold warehouse

2.Food

3.Medical

4.Electronics

5.Hardware

6.Logistics

Application of 3 Way Pallet Stacker



Certificate:

Certificate



Why choose NEOlift?

1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.

2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.

3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
