Narrow Aisle Electric Articulated forklift Truck

The load capacity ranges of NVJ series articulated forklift can be 1.5-2.5 tons and the max lifting height can be 12.5m. Adopting front single drive mechanical differential bridge design, maintenance free full AC motor, large speed ratio gearbox which provides a greater climbing ability. It mainly to meet customers' demand of efficiency priority, medium and heavy duty working conditions, high lifting speed, high driving speed, large capacity battery, excellent ergonomics, easy operation, safety and excellent performance.

  • Item No :

    NVJ
  • Payment :

    T/T,LC/West Union
  • Product Origin :

    China
  • Color :

    Green/Red/Yellow/Customized.
  • Shipping Port :

    Shanghai/Qingdao/Ningbo,etc.
  • Lead Time :

    30 Days
  • Order(MOQ) :

    1 unit

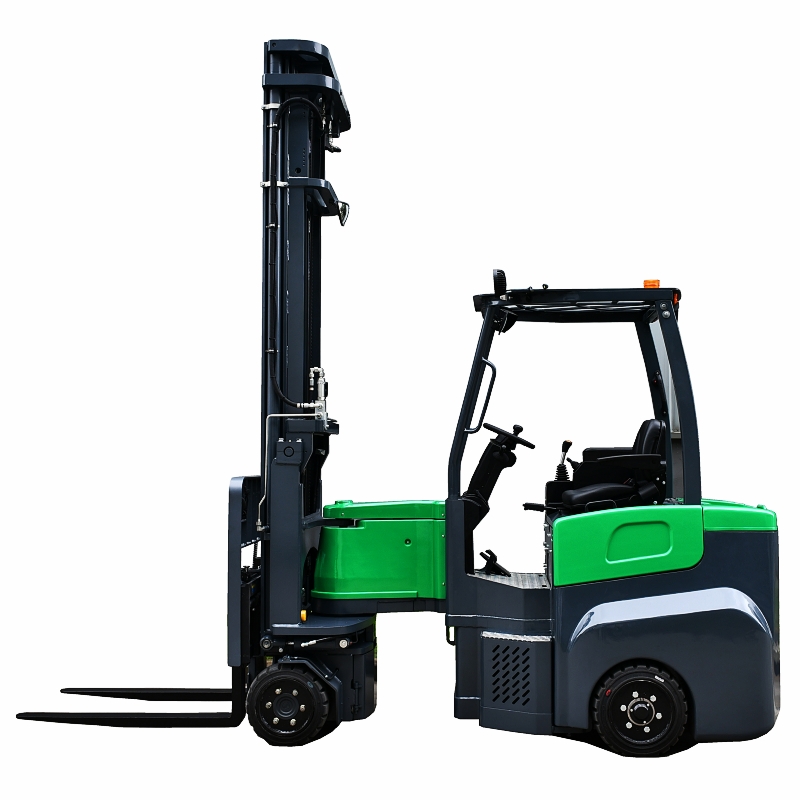

Narrow Aisle Electric Articulated forklift Truck

The load capacity ranges of NVJ series articulated forklift can be 1.5-2.5 tons and the max lifting height can be 12.5m. Adopting front single drive mechanical differential bridge design, maintenance free full AC motor, large speed ratio gearbox which provides a greater climbing ability. It mainly to meet customers' demand of efficiency priority, medium and heavy duty working conditions, high lifting speed, high driving speed, large capacity battery, excellent ergonomics, easy operation, safety and excellent performance.



Details:

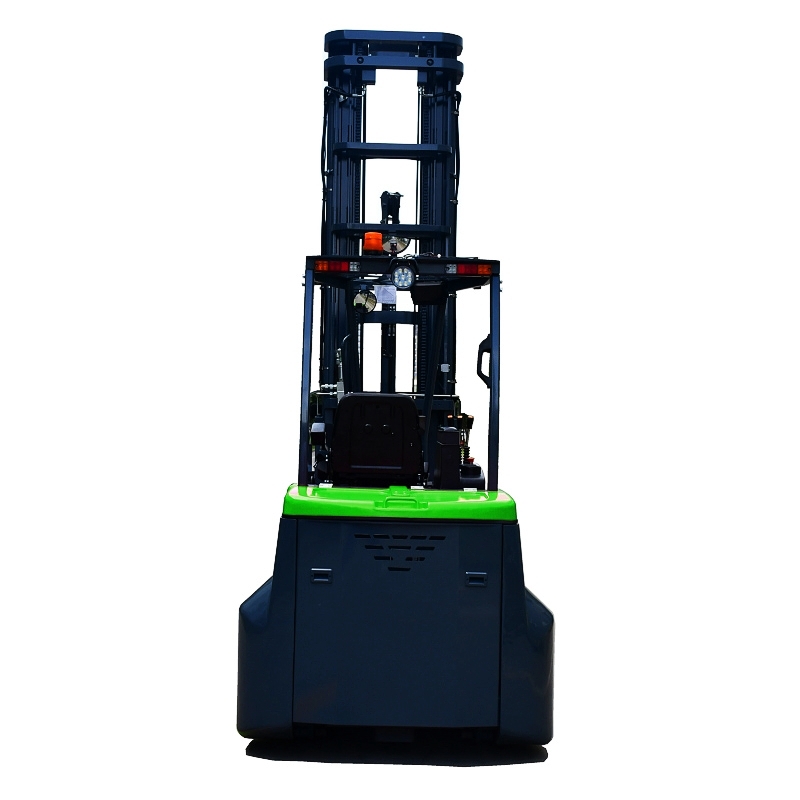

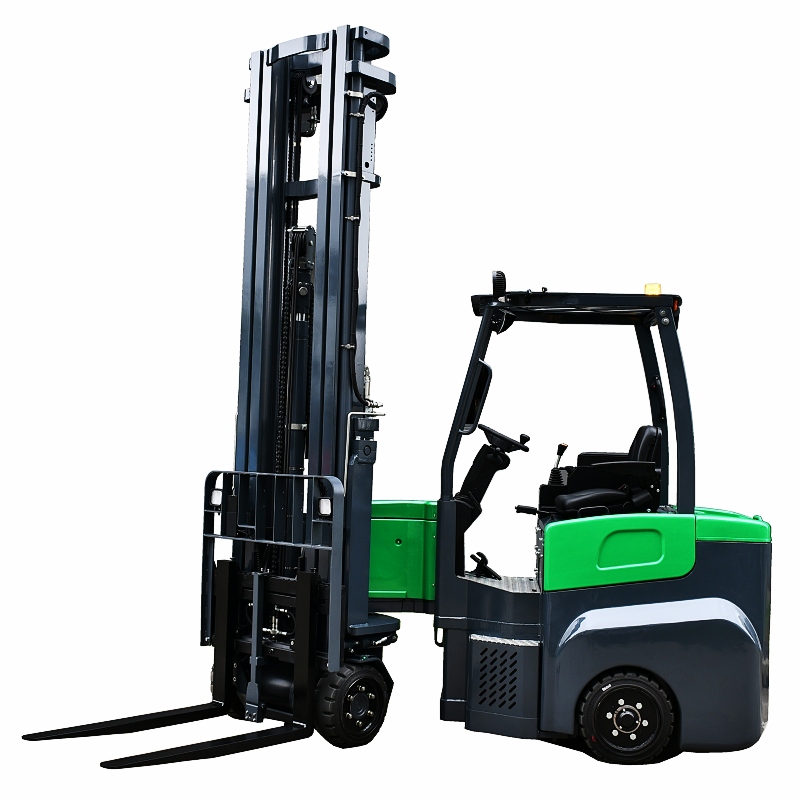

Details of Electric Articulated Forklift



Main Features:

1.Adopting new concept and novel streamlined design, the visual effect is greatly improved.

2.Adopting wide view mast design with wireless camera and video display.

3.International advanced AC controller system enables the forklift to be controlled by computer program for walking, steering, lifting, and tilting.

4.Large-angle fully opened cover and removable rear door panel are convenient for battery replacement and maintenance.

5.AC motor has no maintenance cost such as replacing carbon brush. Reliability and long service life can be guaranteed with high-efficiency AC power system, complete protection functions, speed sensor and temperature sensor.

6.Safety is greatly improved by OPS function as standard configuration.

7.Equipped with high-brightness laser light, the operator can have a reliable reference when stacking in very narrow aisle.



Specification:


  Loading Capacity kg 1500 2000 2500
Load Center Distance mm 500 500 500
Standard lifting height mm 6000 6000 6000
Fork lenghth mm 1070 1070 1070
Turning angel ° ≤205 ≤205 ≤205
Weight with battery kg 6000 6500 7300
Drive motor power kw 7.5 11 11
Oil pump motor power kw 8.5 12 12
Battery type   Lead-acid battery Lead-acid battery Lead-acid battery
Battery voltage V 48 80 80
Battery capacity Ah 600 750 750

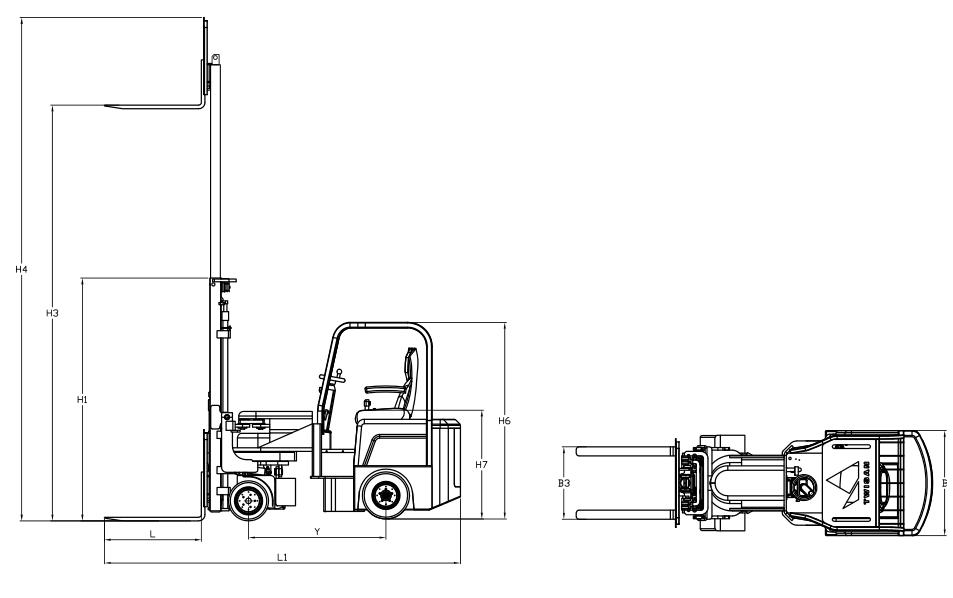

Size of Electric Articulated Forklift

Application:

1.Cold warehouse

2.Food

3.Medical

4.Electronics

5.Hardware

6.Logistics

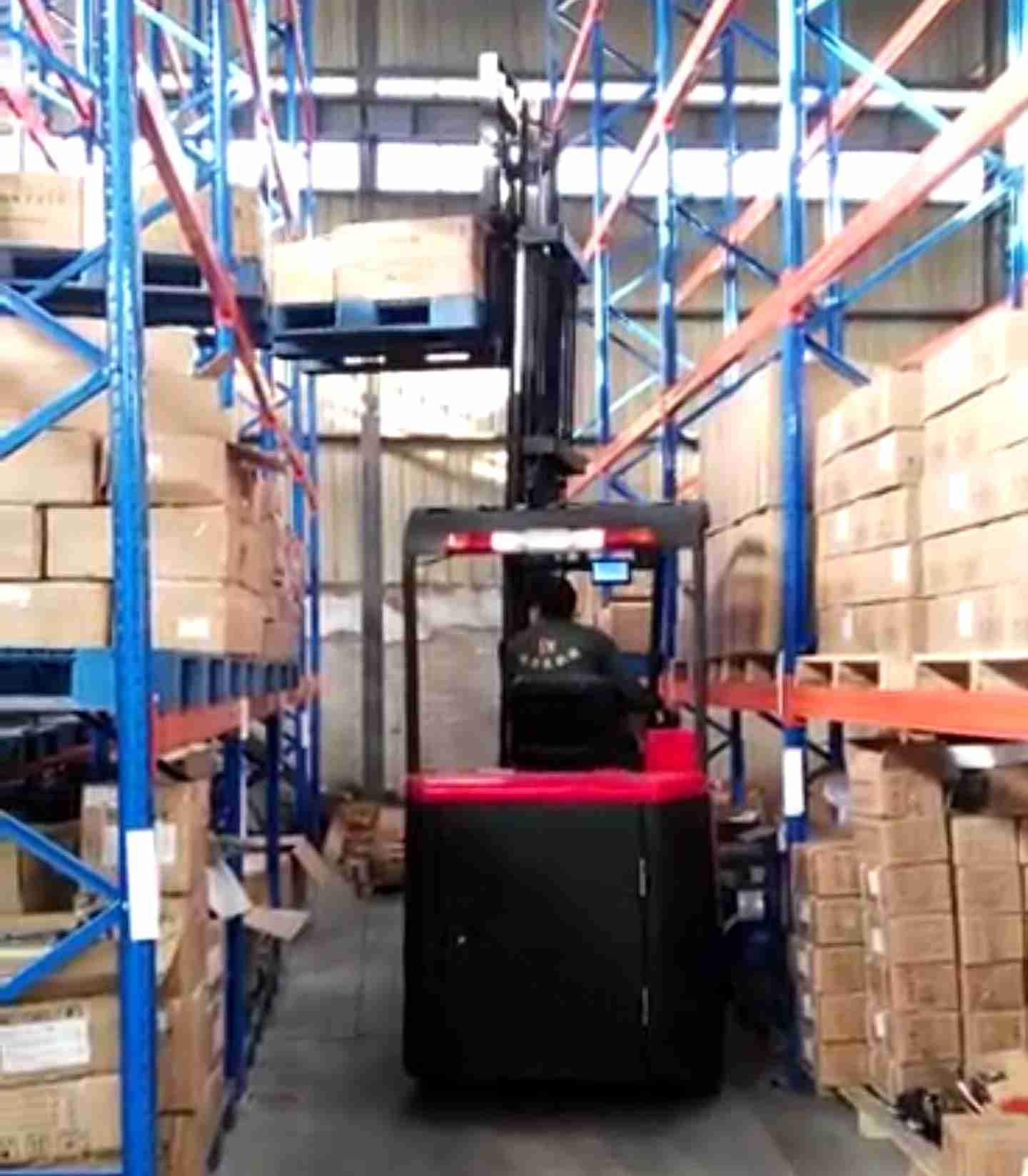

Application of Electric Articulated Forklift



Certificate:

Certificate



Why choose NEOlift?

1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.

2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.

3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
