Electric Powered Battery Pallet Truck
Standing Type Pallet Truck
2-6 T Pallet Stacking Truck

Standing Type Electric Pallet Truck

Standing type electric pallet truck is mainly used for plane point-to-point handling. It is drived by battery. The load capacity 2-6T.It is used for medium and long distance horizontal handling of medium and heavy loads; it is suitable for medium and large shopping malls, supermarkets, freight yards, workshops and other occasions;

●Horizontal handling of medium and heavy cargo;

●Middle and long distance handling;





  • Item No :

    NTZ
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Green/Red/Customized
  • Shipping Port :

    Shanghai/Nanjing/Ningbo,etc
  • Lead Time :

    10-15 days
  • Order(MOQ) :

    1 unit

Standing Type Electric Pallet Truck

Standing type electric pallet truck is mainly used for plane point-to-point handling. It is drived by battery. The rated load capacity range 2-6T.It is used for medium and long distance horizontal handling of medium and heavy loads; it is suitable for medium and large shopping malls, supermarkets, freight yards, workshops and other occasions;Horizontal handling of medium and heavy cargo;Middle and long distance handling;



Details:

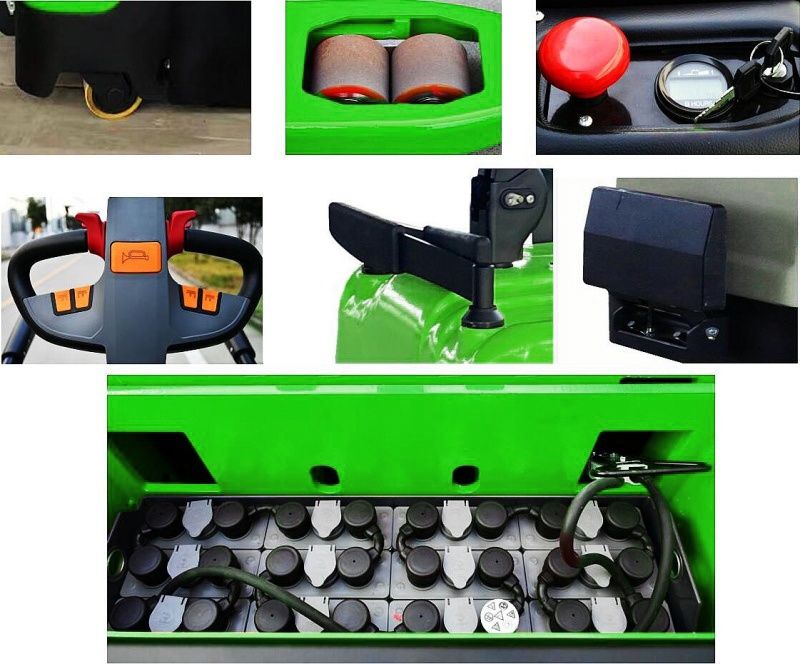

Details of Stand On Type Electric Pallet Truck





Features:

1. Equipped with electric steering as standard, the operation is easier and safer.

2. The wing safety function, when the wing is lowered, the speed of the vehicle will drop by 30-40% when driving,

   Increased operator safety.

3. Detachable pedal design, it is more convenient to replace accessories.

4. The turning speed is limited to prevent the vehicle from turning over too fast.

5. AC drive motor, maintenance-free.



Specification


  Manufacturer   NEOlift
Model   NTZ20 NTZ25 NTZ30 NTZ40 NTZ60
Power type   Battery Battery Battery Battery Battery
Rated capacity kg 2000 2500 3000 4000 6000
Service weight(incl. battery) kg 676 676 860 900 1300
Lift height mm 120 120 110 110 110
Fork size mm 1150/170/56 1150/170/56 1150/175/75 1150/205/75 1200/255/87
Brake type    Electromagnetic Electromagnetic Electromagnetic Electromagnetic Electromagnetic
Drive motor (S2-60 min) kw 1.5(AC) 1.5(AC) 1.5(AC) 2.3(AC) 2.5(AC)
Lift motor (S3-15%) kw 2.2(DC) 2.2(DC) 2.2(DC) 2.2(DC) 3.0(DC)
Battery voltage/  capacity V/Ah 24/210 24/210 24/210 24/270 24/270
Battery weight kg 200 200 200 240 240
Steering System   EPS EPS EPS EPS Electric power steering
Battery replacement type   Hoisting Hoisting Hoisting Hoisting Hoisting

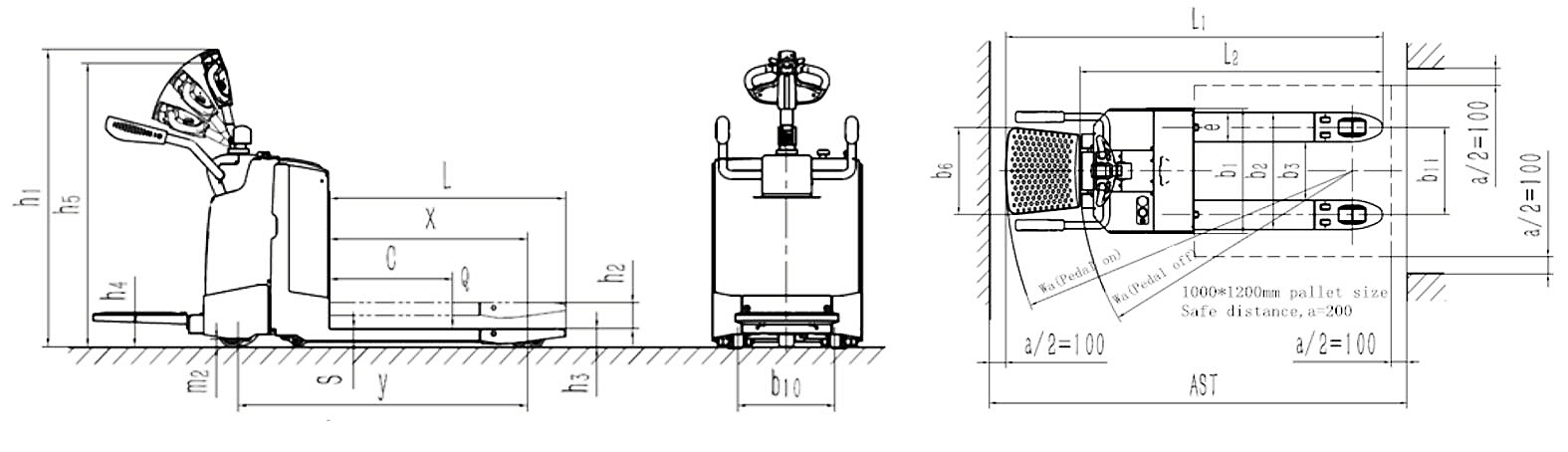

Size Of Stand On Type Electric Pallet Truck



Application:

1.Logistics,

2.Warehousing

3.Food

4.Textile,

5.Printing

6.Cold chain and other industries.

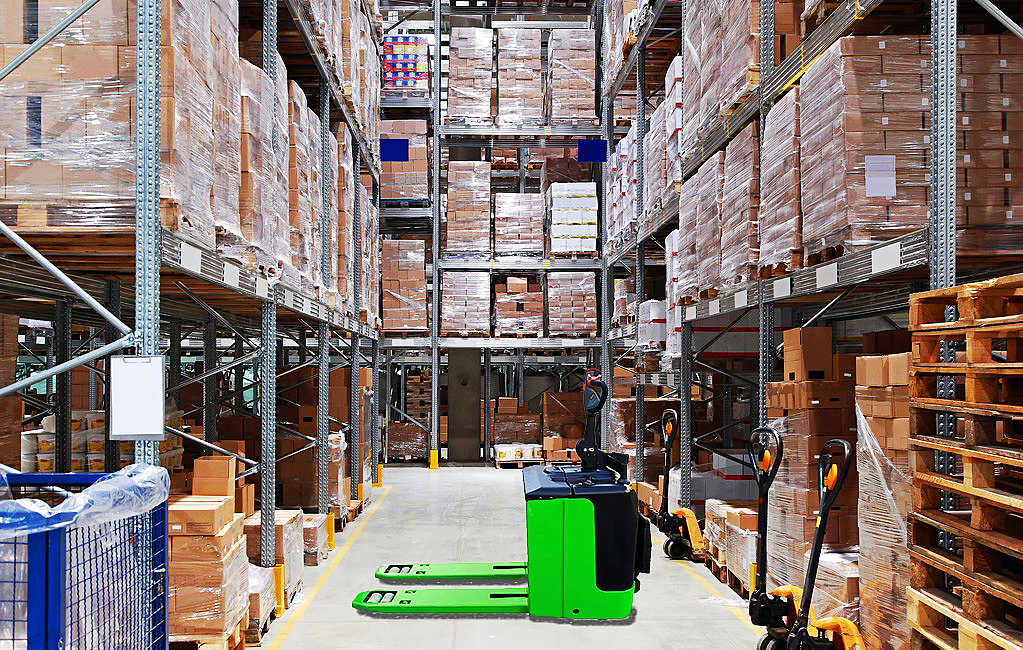

Application Of Stand On Type Electric Pallet Truck



Certificate:

Certificate



Why choose NEOlift?

1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.

2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.

3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
