K series gasoline and LPG counterbalanced forklifts have a load capacity of 1.5 tons to 4 tons and a lifting height of 3 meters to 7 meters. It can be equipped with Guangqing and Nissan engines and is widely used in construction, logistics, mining, terminals and other industries.
Item No :
CPQYDPayment :
T/TProduct Origin :
ChinaColor :
Green/Red/CustomizedShipping Port :
Shanghai/Ningbo/Qingdao,etcLead Time :
15 daysEngine :
Chinese/Japanese engineOrder(MOQ) :

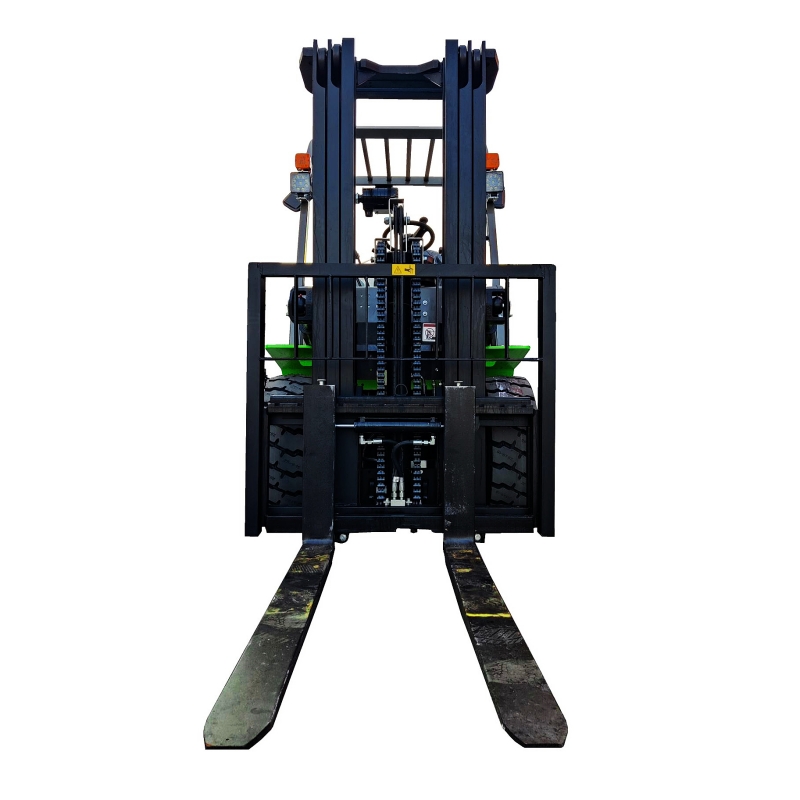

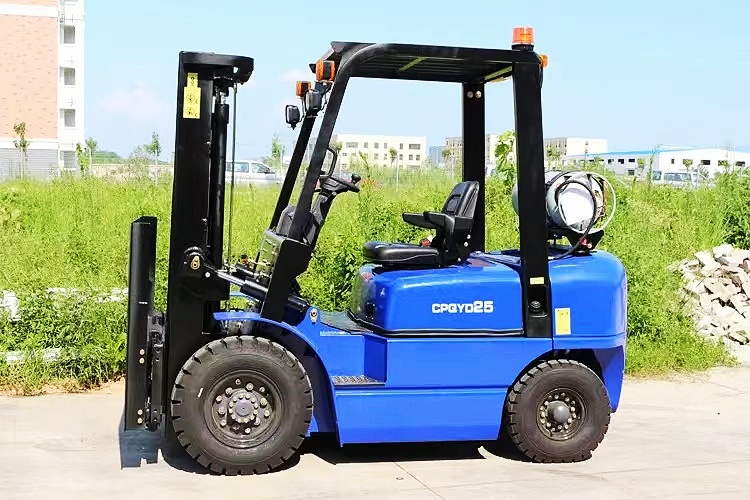

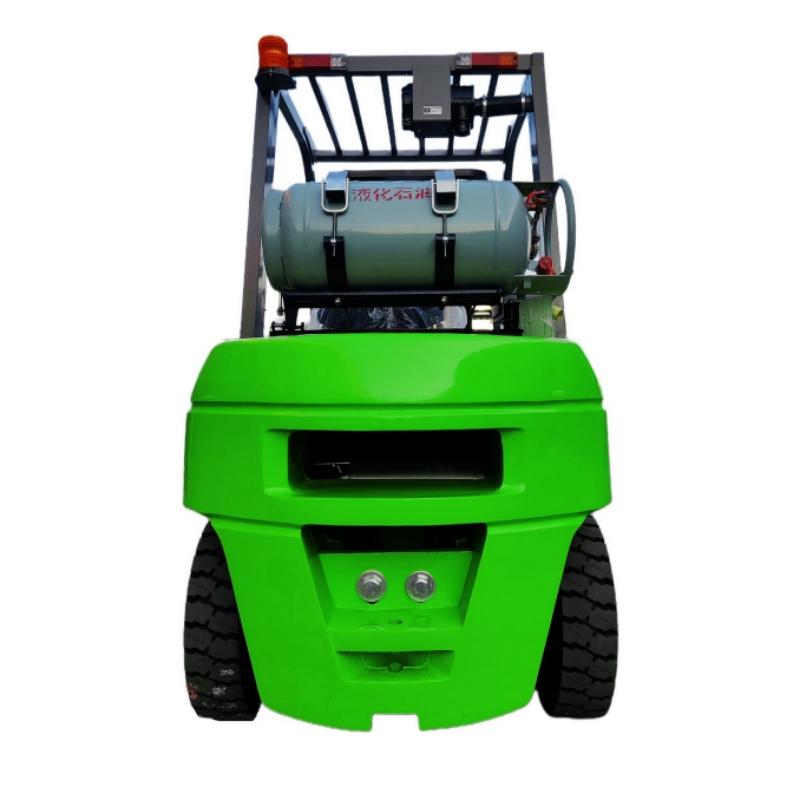

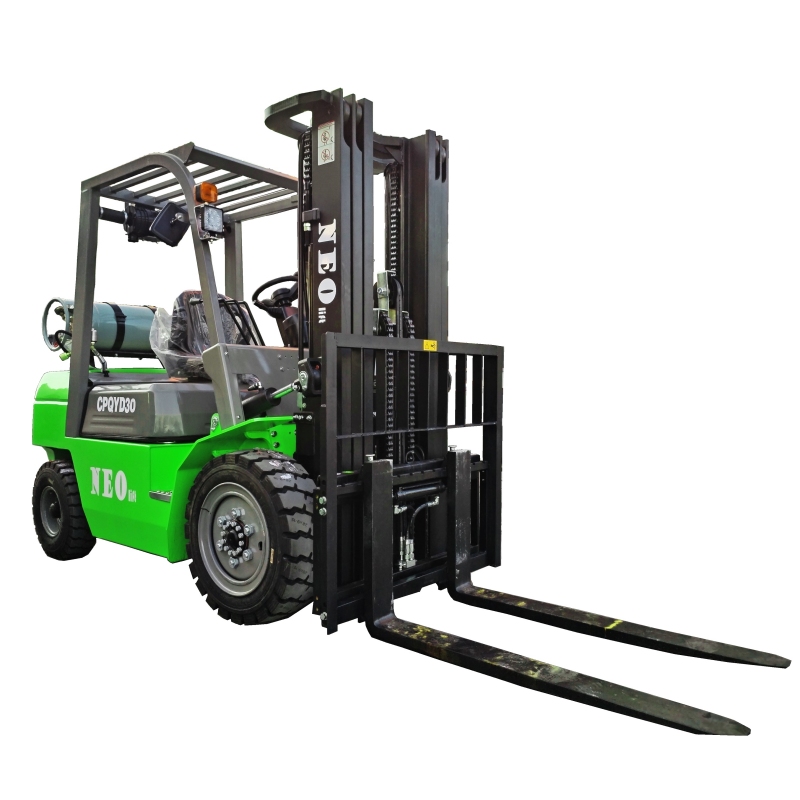

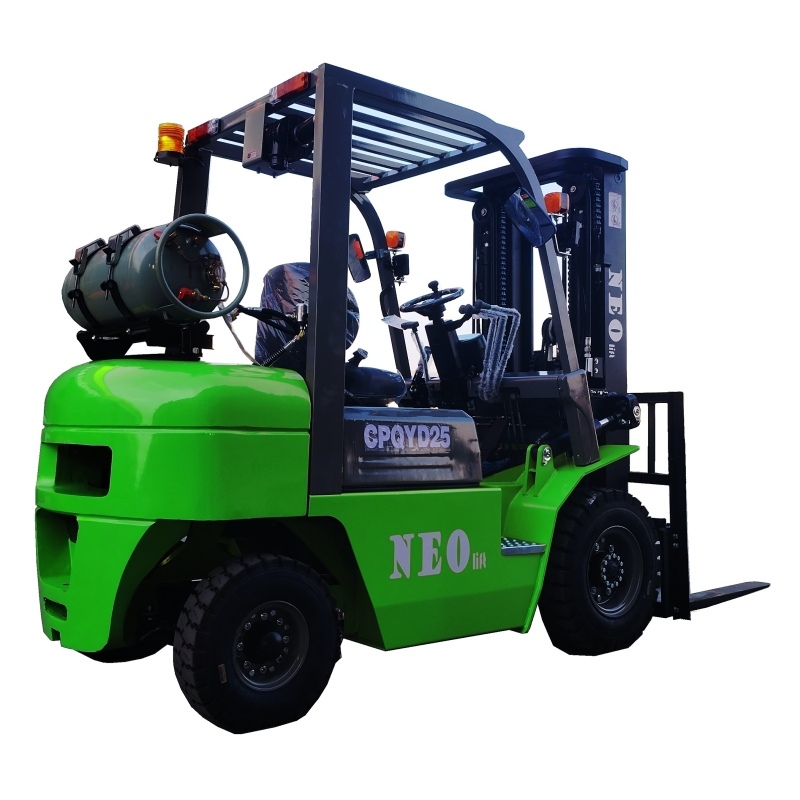

1 unitK series 1.5-4 tons gasoline and LPG forklift truck
K series gasoline and LPG counterbalanced forklifts have a load capacity of 1.5 tons to 4 tons and a lifting height of 3 meters to 7 meters. Can be equipped with Guangqing and Nissan engines, or specified engines upon request. This series of forklifts are cost-effective, safe and efficient, and are widely used in construction, logistics, mining, docks and other industries.

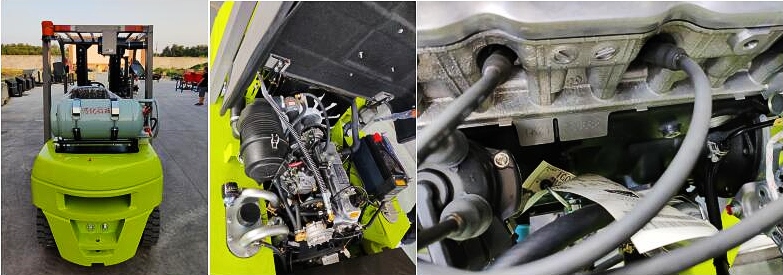

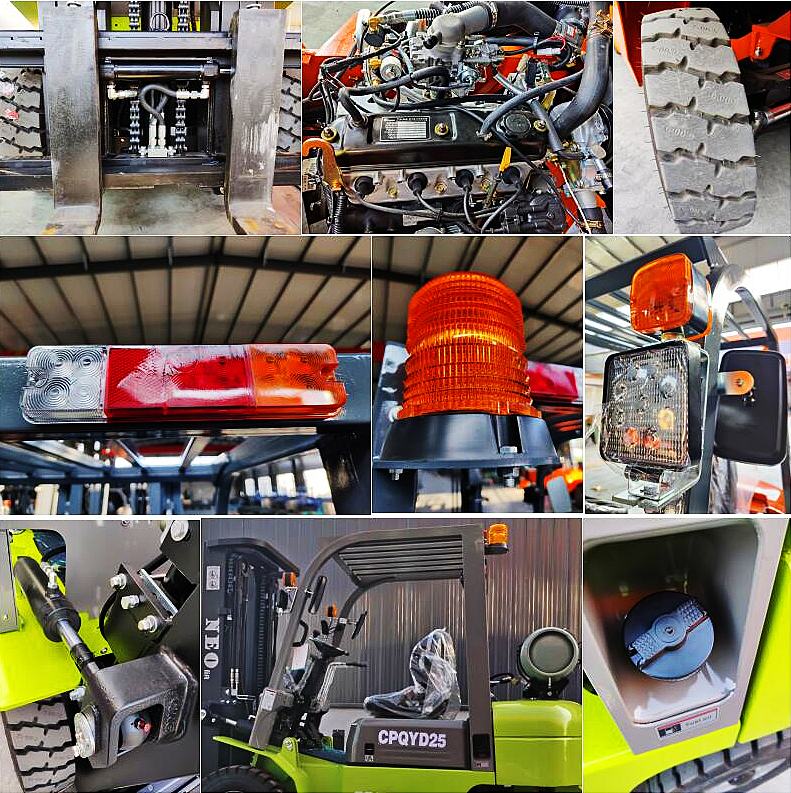

Details:
Features:
1. Adopt simple, elegant, beautiful and strict appearance design;
2. The wide-view mast design makes the driver’s field of view wider and the operation safer;
3. Reliable LCD digital special instruments and friendly human-machine interface facilitate the driver to accurately grasp the vehicle status;
4. New adjustable steering wheel improves operating comfort and adjustment reliability;
5. The design of the high-top and large-diameter air intake system keeps the engine away from dust, effectively exerts the engine performance, makes the engine more powerful and extends the service life;
6. Optional cast steering axle can reduce later maintenance costs.
7. Using gasoline and natural gas is more environmentally friendly and cheaper.

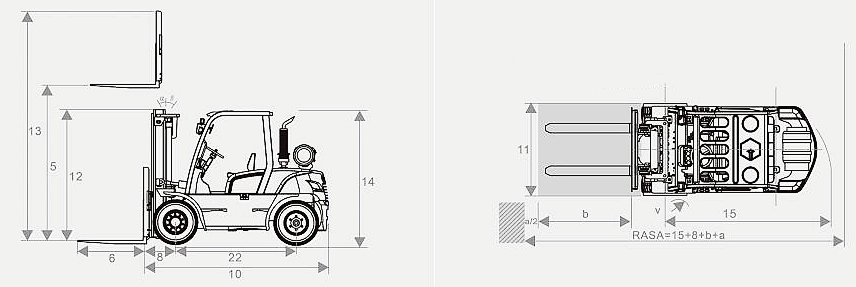

Specification:
Model | CPQYD15 | CPQYD20 | CPQYD25 | CPQYD30 | CPQYD35 | CPQYD40 | |
Power | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | |
Capacity | kg | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 |
Load center | mm | 500 | 500 | 500 | 500 | 500 | 500 |
Lift height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Free lift height | mm | 100 | 100 | 100 | 100 | 100 | 0 |
Fork size | mm | 920×100×35 | 1070×122×40 | 1070×122×40 | 1070×125×45 | 1070×125×50 | 1070×150×45 |
Wheelbase | mm | 1410 | 1600 | 1600 | 1700 | 1700 | 1900 |
Service weight | Kg | 2660 | 4030 | 4130 | 4350 | 4560 | 5300 |
Battery | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 | 12/80 | 12/100 |
Engine | GQ/Nissan | GQ/Nissan | GQ/Nissan | GQ/Nissan | GQ/Nissan | GQ/Nissan | |
Engine rated power | kw/r.p.m | 32 | 36.8 | 36.8 | 36.8 | 36.8 | 36.8 |
Gearbox |
Mechanical /Hydraulic |
Mechanical /Hydraulic |
Mechanical /Hydraulic |
Mechanical /Hydraulic |
Mechanical /Hydraulic |
Mechanical /Hydraulic |
|
Working pressure | Mpa | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 |
Application:
1.Warehouse
2.Port
3.Factory
4.Distribution Center
5.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
